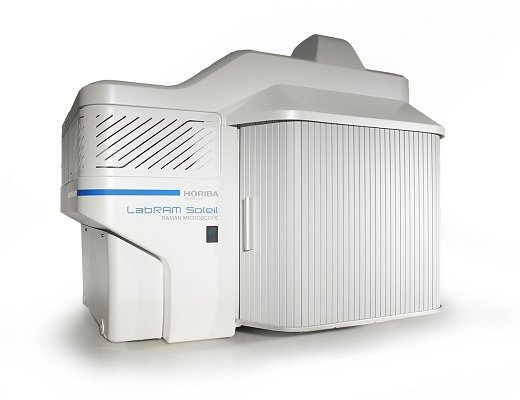

LabRAM Soleil

Goods number:
The result of 50 years of expertise in Raman spectroscopy, LabRAM Soleil™ offers unprecedented capabilities for Raman multimodal confocal imaging, in a compact footprint.

Due to the high level of automation implemented, high optical throughput, objective recognition, motorized switching mirrors, ultra-fast mapping capabilities with SmartSampling™ and QScan™, fast motorized 4-grating turret, high speed auto-alignment and new options offered by the LabSpec 6 software suite, the LabRAM Soleil™ is ready to work 24 hours a day with minimal human supervision.

產品敘述

LabRAM Soleil™ offers great variety of optical viewing modes and hyperspectral imaging features in a compact and laser safe design:

  • < 1m² footprint
  • Large Class 1 sample compartment
  • Reflection (episcopic) /transmission (diascopic) illumination
  • Imaging in optical microscopy bright field/dark field/epifluorescence/phase and differential interferometric contrast (DIC)
  • ViewSharp 3D Topography
  • QScan™ high quality scanning technology for 3D confocal imaging with Laser light-sheet illumination - mapping without moving
  • XYZ 3D confocal imaging, Z-profile (single-point or layer by layer with QScan™ option)
  • Super-low frequency (30 cm-1) Raman scattering as standard
  • Photoluminescence (PL), electroluminescence, photocurrent, upconversion
  • Nanoscale spectroscopy: NanoRaman (TERS), NanoPL, and Cathodoluminescence with our AFM and SEM extensions
