GeoSpec is the industry standard NMR rock core analyser, with installations in almost every major oil producer and SCAL laboratory world-wide. Three models are available operating at 2, 12 and 20MHz. The GeoSpec 2MHz models are the industry standard for routine measurements of relaxation distributions, allowing the prediction of basic petrophysical parameters such as porosity, free and bound fluid determinations and T2 cutoff.

These instruments operate at 2MHz to reduce artefacts caused by ferromagnetic material in the samples and to mimic the operation of the NMR logging tools. Higher field (12 and 20MHz) GeoSpec models are available for situations where higher sensitivity is required, for example, very low porosity samples, and for special applications such as Magnetic Resonance Imaging (MRI).

The GeoSpec range of instruments is the result of a successful long-term collaboration between Oxford Instruments and Green Imaging Technologies (GIT), the world leaders in hardware and software for NMR core analysis.


• Improved Signal to Noise for faster analysis.

• Improved sensitivity for measurements on very low porosity rocks.

• Shorter echo times to characterise tightly bound rocks and give more accurate porosity values.

• Low susceptibility to probe detuning for improved ease of use.

• External power dissipation for reduced thermal effects.

• Improved power handling capability for better 180o pulses.

• Built-in calibration feature for a better accurac over a wide range of conductive rocks

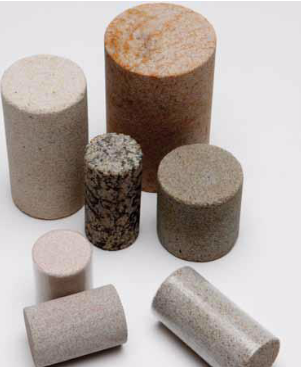

  • Rock Core Analysis



GeoSpec product information
