VisUV

Goods number:

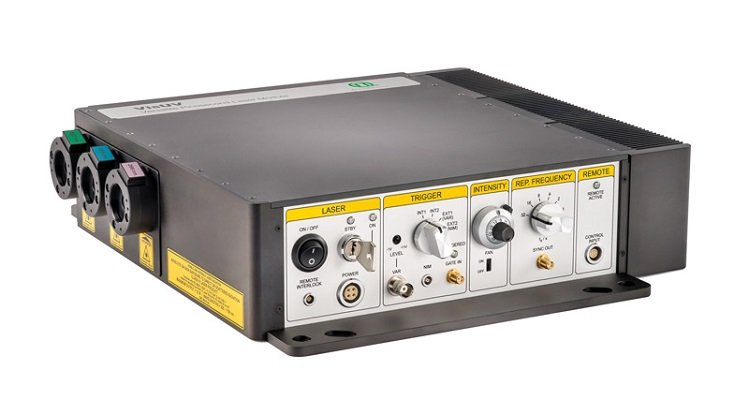

The VisUV laser is a versatile and flexible platform based on a Master Oscillator Fiber Amplifier (MOFA) concept with frequency conversion. The master oscillator generates infrared picosecond pulses at 1064 nm with variable repetition rates up to 80 MHz using the proven gain-switching techniques from PicoQuant. The output of this seed laser is directly connected to a multi-stage fiber amplifier, which boosts the output from the seed laser by several dB while maintaining the other characteristics of the seed laser beam like the emission wavelength, polarization and the pulse width.

產品敘述

Picosecond Lasers in UV, Green, Yellow, and Orange

  • Enhanced power values at 280 and 295 nm
  • UV wavelengths 266, 280, 295, 355 nm
  • Vis wavelengths 532, 560, 590 nm
  • Pulse width <85 ps (FWHM)
  • Repetition rates from single shot up to 80 MHz, external or internal triggering
  • Collimated output, optional fiber coupling

詳細規格

The VisUV can be used for various applications, such as:

  • Time-resolved Fluorescence
  • Stimulated Emission Depletion Microscopy (STED)
  • Fluorescence Lifetime Imaging (FLIM)
  • Phosphorescence Lifetime Imaging (PLIM)
  • Fluorescence Correlation Spectroscopy (FCS)
  • Fluorescence Lifetime Correlation Spectroscopy (FLCS)
  • Foerster Resonance Energy Transfer (FRET)
  • Dual Focus Fluorescence Correlation Spectroscopy (2fFCS)
  • Pulsed Interleaved Excitation (PIE)
  • Fluorescence Anisotropy (Polarization)
  • Singlet Oxygen
  • Laser Cutting/Ablation
  • Time-Resolved Photoluminescence (TRPL)
  • TRPL Imaging
  • Lanthanide Upconversion
  • LIDAR/Ranging/SLR
  • Antibunching
  • 3D polymerization
  • Single Molecule Spectroscopy
