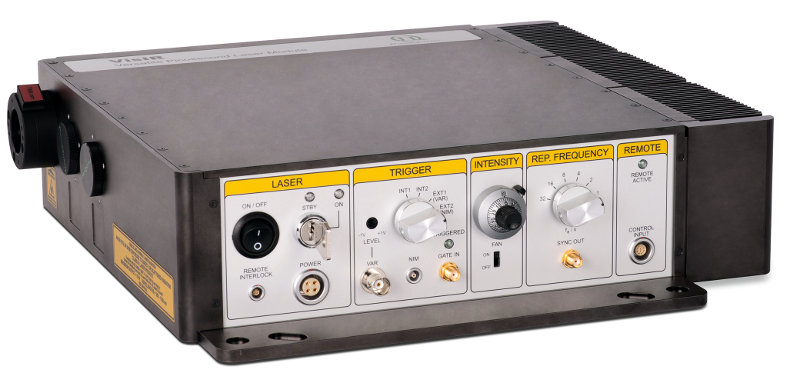

High Power Picosecond Laser
- NEW: any wavelength between 765 and 780 nm, 1064 nm, 1532 nm
- Pulse width typically 70 ps (FWHM) or 0.5 ns (FWHM)
- NEW: option to tune pulse duration from 0.15 to 0.5 ns for high powered versions
- Average output power between > 400 mW and > 1.5 W (depending on wavelength)
- Repetition rates from single shot up to 80 MHz, external or internal triggering
- Collimated output
詳細規格
The VisIR-765-HP "STED" has been mainly designed to be used as a depletion laser in Stimulated Emission Depletion Microscopy (STED), but it can be used for various other applications, such as:
- Fluorescence Lifetime Imaging (FLIM)
- Phosphorescence Lifetime Imaging (PLIM)
- Fluorescence Correlation Spectroscopy (FCS)
- Fluorescence Lifetime Correlation Spectroscopy (FLCS)
- Foerster Resonance Energy Transfer (FRET)
- Pulsed Interleaved Excitation (PIE)
- Fluorescence Anisotropy (Polarization)
- Time-Resolved Photoluminescence (TRPL)
- TRPL Imaging
- LIDAR/Ranging/SLR
- Antibunching
