品牌: MPD

應用: 光學量測

PSD-MOD

Goods number:

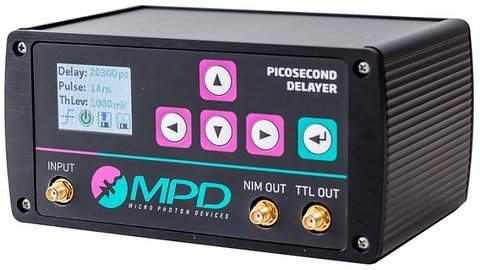

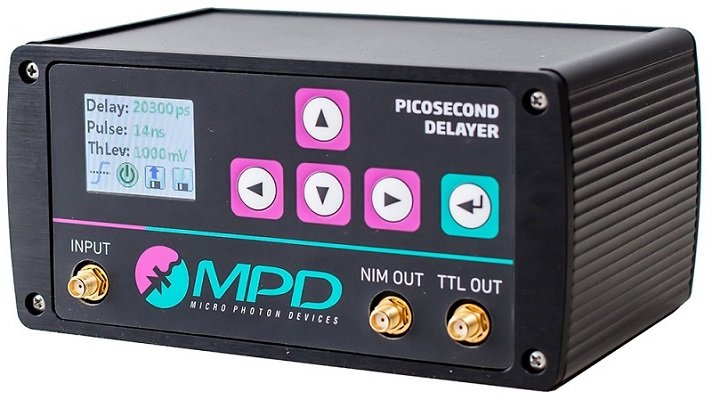

Logo MPDThe picosecond delayer is a module designed and manufactured by Micro Photon Devices (MPD) that is capable to generate output pulses (both NIM and TTL) with user-selectable delay and output pulse duration, in respect to the rising or falling edge of an input signal.

The delayer is completely based on solid-state components and features a 50 ns nominal full scale range with a 10 ps step delay resolution, whilst the pulse duration is also user controllable from 1 ns to 250 ns with a nominal step of 3.3 ns.

產品敘述

Picosecond Delayer

  • 50 ns maximum delay range, 10 ps step
  • TTL and NIM output pulses
  • Up to 390 MHz bandwidth (NIM output)
  • Programmable output width
  • INL between +50 ps and -100 ps over full-scale range and for all temperatures
  • Random jitter typ. 5 ps RMS
  • < 1 ms programming time
  • USB interface
  • All solid state, no coax cables
