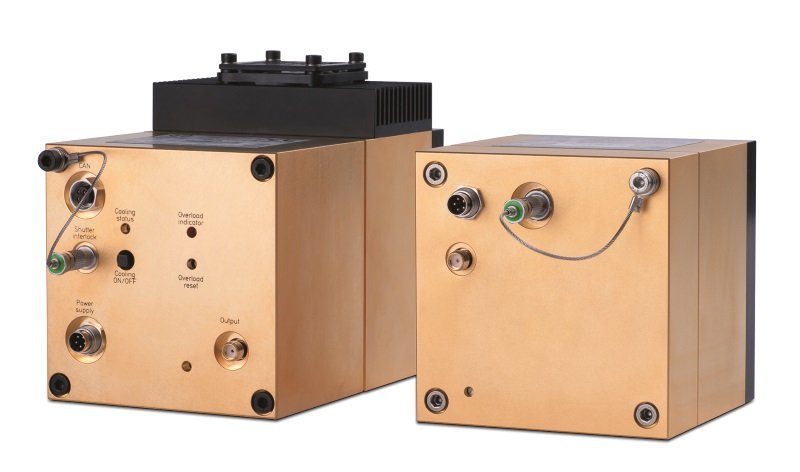

Photomultiplier Detector Assembly
- Timing resolution < 180 ps (FWHM)
- Quantum efficiencies up to 40% (cathode dependent)
- Spectral ranges from 185 nm to 920 nm available
- Optional thermoelectric cooler
- Internal GHz pre-amplifier and shutter
- Simple 12 V DC power supply, no HV supply required
- RF and magnetic shielding with refined iron or nickel coated aluminum housing
詳細規格
The single photon sensitive detectors of the PMA Series can be used in various applications, where the large active area, good sensitivity and good timing resolution of the detector are important, such as:
- Time-Resolved Fluorescence
- Fluorescence Lifetime Imaging (FLIM)
- Phosphorescence Lifetime Imaging (PLIM)
- Foerster Resonance Energy Transfer (FRET)
- Fluorescence Anisotropy (Polarization)
- Time-Resolved Photoluminescence (TRPL)
- TRPL Imaging
- Lanthanide Upconversion
- Bunch Purity
- LIDAR/Ranging/SLR
- Diffuse Optical Tomography and Imaging
