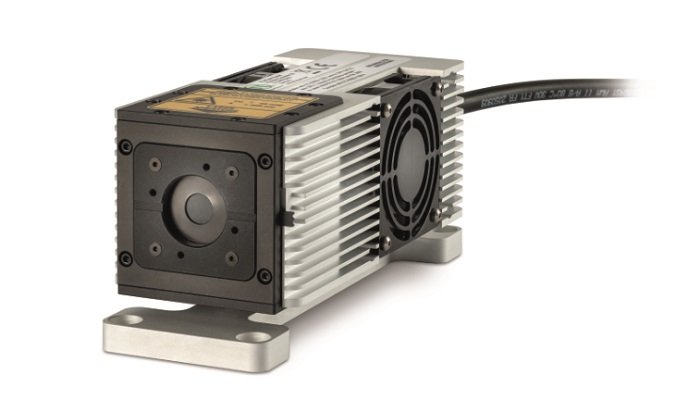

The LED heads from the PLS-I Series are compatible with the Taiko PDL M1 and allow for sub-to-few nanosecond pulsed, burst as well as Continuous Wave (CW) mode operation. They combine short pulse widths, high repetition rates, and high optical power in a compact and maintenance free set-up.

High Power Nanosecond Pulsed LEDs

• Wavelengths from 245 to 600 nm
• Average power up to 300 µW (pulsed and CW)
• Pulse widths 0.8 to 2 ns (FWHM)
• Repetition rate from single shot up to 40 MHz
• Pulsed, burst and CW mode
• Optional band pass filter available for improved spectral purity

The high power nanosecond pulsed LEDs from the PLS-I Series can be used for various applications, where sub-to-few nanosecond pulsed, burst or CW mode operation are important, such as:

• Time-resolved fluorescence spectroscopy
• Biochemical analysis
• Detection of molecules labeled with Perylene, Coumarin, Fluorescein and Rhodamine dyes
• Intrinsic protein fluorescence from tryptophan or tyrosine
• Testing of optoelectronic devices such as pin-diodes and PMTs
