產品敘述

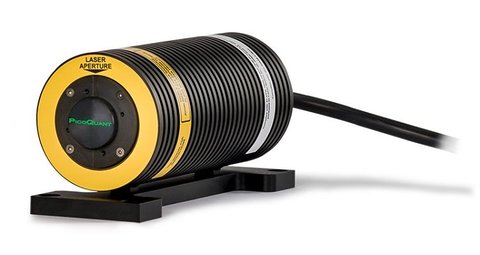

Smart Laser Diode Heads for Taiko PDL M1
- NEW: Dual calibration - max power and linear mode
- NEW: High power multimode diodes in Vis and NIR
- Coming soon: 532, 561, and 594 nm
- Wavelengths between 375 nm and 1550 nm
- Pulse widths as short as 20 ps (FWHM)
- Repetition rate from single shot to 100 MHz
- Adjustable (average) power up to 200 mW
- Pulsed, bursts, and CW operation
- Power calibrated, operating hours counter, TE cooled

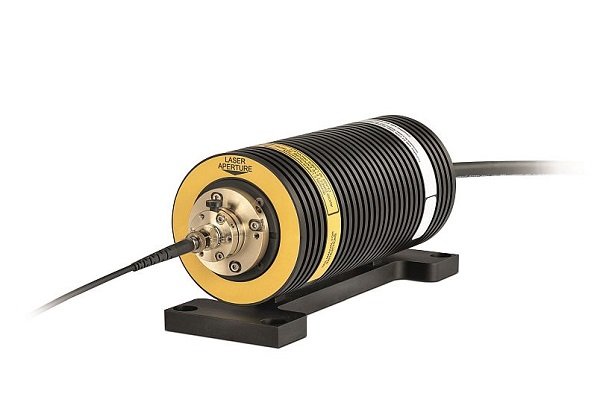

- Collimated beam, optional fiber coupling
詳細規格
The smart picosecond pulsed diode lasers of the LDH-I Series can be used for various applications, where short pulses with high and variable repetition rates as well as stable pulse energies are important, such as:
- Time-Resolved Fluorescence
- Fluorescence Lifetime Imaging (FLIM)
- Phosphorescence Lifetime Imaging (PLIM)
- Fluorescence Correlation Spectroscopy (FCS)
- Fluorescence Lifetime Correlation Spectroscopy (FLCS)
- Foerster Resonance Energy Transfer (FRET)
- Stimulated Emission Depletion Microscopy (STED)
- Dual Focus Fluorescence Correlation Spectroscopy (2fFCS)
- Pulsed Interleaved Excitation (PIE)
- Fluorescence Anisotropy (Polarization)
- Singlet Oxygen
- Laser Cutting/Ablation
- Time-Resolved Photoluminescence (TRPL)
- TRPL Imaging
- Lanthanide Upconversion
- Laser Seeding
- LIDAR/Ranging/SLR
- Antibunching
- Diffuse Optical Tomography and Imaging
- Single Molecule Spectroscopy / Detection
- Single Photon Generation
- Time response characterization of opto-electronic devices
