LDH-FA Series

Goods number:
The Scheme of the LDH-FA Seriespicosecond pulsed laser diode heads of the LDH-FA Series are based on a Master Oscillator Fiber Amplifier (MOFA) concept with optional frequency conversion. The master oscillator generates infrared picosecond pulses with variable repetition rates up to 80 MHz using the proven gain-switching techniques from PicoQuant. The output of this seed laser is directly connected to a single or double stage fiber amplifier, which boosts the output from the seed laser by several dB while maintaining the other characteristics of the seed laser beam like the emission wavelength, polarization and the short pulse width.

產品敘述

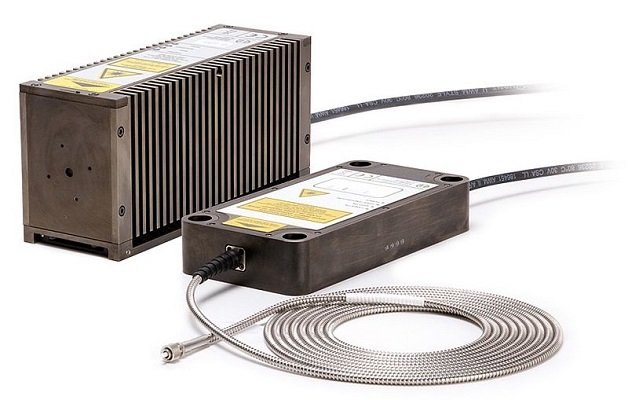

Amplified Picosecond Pulsed Laser Diode Heads

  • NEW: 40 mW pulsed and CW laser head at 765 nm
  • NEW: 50 mW pulsed and CW laser head at 532 nm
  • NEW: 1 mW pulsed laser head at 595 nm
  • NEW: 100 mW pulsed laser head at 775 nm
  • Available wavelengths: 266, 355, 515, 531, 560, 766, 775, 1030, 1064, and 1532 to 1560 nm
  • Pulse width down to 70 ps (FWHM)
  • Average output power between 1 mW and 450 mW (depending on wavelength)
  • Repetition rates up to 80 MHz
  • Collimated beam or PM fiber output with FC/APC fiber connector

詳細規格

The picosecond pulsed diode lasers of the LDH-FA Series can be used for various applications, where short pulses with high and variable repetition rates as well as stable pulse energies are important, such as:

  • Time-Resolved Fluorescence
  • Fluorescence Lifetime Imaging (FLIM)
  • Phosphorescence Lifetime Imaging (PLIM)
  • Fluorescence Correlation Spectroscopy (FCS)
  • Fluorescence Lifetime Correlation Spectroscopy (FLCS)
  • Foerster Resonance Energy Transfer (FRET)
  • Stimulated Emission Depletion Microscopy (STED)
  • Dual Focus Fluorescence Correlation Spectroscopy (2fFCS)
  • Pulsed Interleaved Excitation (PIE)
  • Fluorescence Anisotropy (Polarization)
  • Singlet Oxygen
  • Laser Cutting/Ablation
  • Time-Resolved Photoluminescence (TRPL)
  • TRPL Imaging
  • Lanthanide Upconversion
  • LIDAR/Ranging/SLR
  • Antibunching
  • Single Molecule Spectroscopy / Detection
  • 3D polymerization
