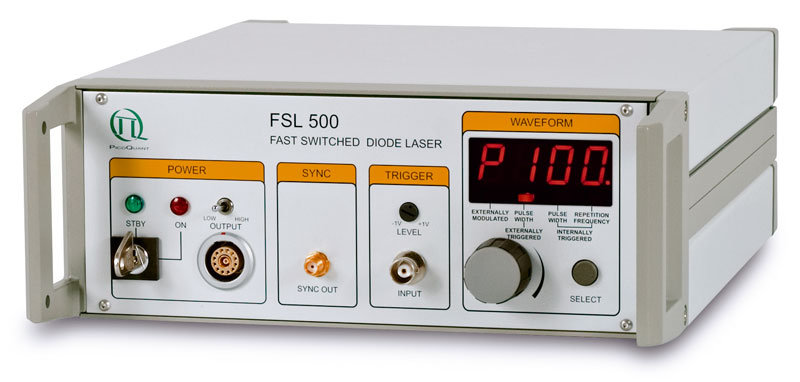

FSL 500

Goods number:

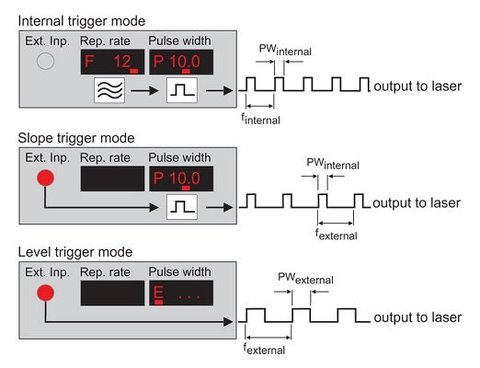

The FSL 500 laser system consists of a universal driver and different laser heads for different wavelengths. It can work in three different operation modes: internal, level and slope triggered mode, that differ in the pulse width and repetition rate achievable.

產品敘述

Fast Switched Diode Laser

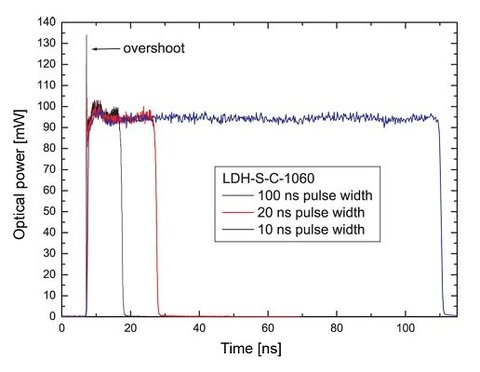

  • Pulse width adjustable between 3 and 100 ns
  • Ultra short rise/fall time down to 0.3 ns / 0.8 ns
  • Repetition rate from single shot to 12 MHz
  • User-defined signal patterns via external triggering
  • Completely switched off between pulses
  • Laser heads for wavelengths from 375 to 1550 nm
  • 'On' power level adjustable between 30 % and full power

詳細規格

The FSL 500 laser system can be used for various applications, where nanosecond pulses with variable pulse width are important, such as:

  • Time-Resolved Fluorescence
  • Laser Seeding
  • Time response characterization of opto-electronic devices
  • Semiconductor device testing
  • Printing industry (Computer-to-Plate technology CTP)
  • Optical data storage
  • Direct photo lithography
