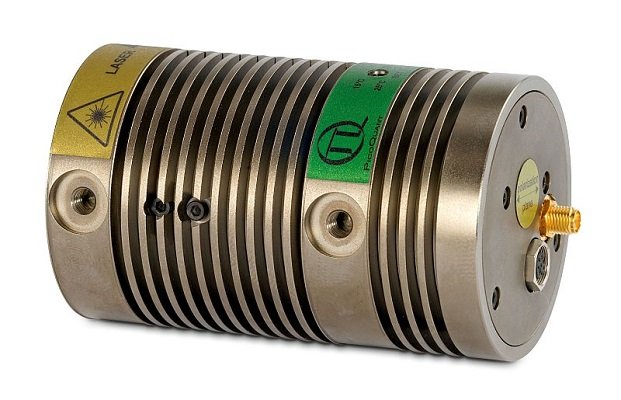

The CPDL-M and CPDL-S Series from PicoQuant consists of a range of laser heads solutions for OEM integration. These laser heads are based on our well established picosecond pulsed diode laser technologies as used in the LDH Series. The CPDL-M and CPDL-S heads do not require a laser driver from the PDL Series for operation.

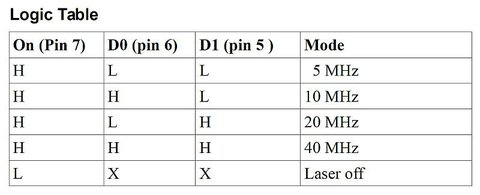

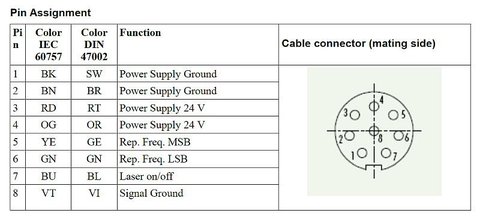

However, some (simple) integration work on the customer’s side is needed to provide an electrical power supply. Optionally, a specific CPDL power supply including key and frequency switches can be provided for plug and play operation. These laser heads do not require any adjustment and are delivered with fixed intensity setting (i.e. with fixed pulse shape and pulse energy). The laser heads can be triggered either internally (CPDL-M) at selected repetition rates (typically 40, 20, 10, and 5 MHz) or externally (CPDL-S) at any repetition rate ranging from single shot up to typically 40 MHz.

The model list shown here is non-exhaustive and custom tailored solutions can be realized on request. Feel free to to contact us with your requirements.
